Multi-Layer SPC Flooring Making Machine/LVT Vinyl Plank Floor Production Line

Application: Plates
Plastic Processed: PVC
Screw diameter: 200 mm
Product description: Supply Lvt Vinyl Plank Floor Production Line,Spc Flooring Making Machine,Spc Flooring Making Machine Making Machine Product
INQUIRY WHATSAPP

The spc lock floor is made of polyvinyl chloride (divided into pure new material, mixed material, recycled material), calcium

powder (classified with stone powder grade) and solvent (the use of chemical grades also use plant solvent food grade).

Automatic metering according to raw material ratio → hot mixing of high-speed mixer (temperature of hot mixing: 125 ℃, It is to

mix all kinds of materials evenly, remove the moisture in the materials) → enter the cold mixing (cool the materials, Prevent

caking and discoloration, cold mixing temperature: 55 ℃.) → mix evenly by cooling;

the twin-screw extruder for heating extrusion → enter the sheet die head for extrusion molding, forming the sheet. After four

roller calender, the base material is fixed thickness → color film → wear layer → cooling → cutting;

Surface UV → tempering (tempering hot water temperature: 80 ~ 120 ℃; cold water temperature: 10 ℃)

Process 4: slitting and slotting packing

Cutting → slotting, trimming and chamfering → inspection → packaging

No.	Machine Name	Quantity
1.	Mixing Machine For PVC and Calcium powder	1set
2.	Feeding Machine For Mixing Machine	1set
3.	Automatic Feeding Machine For Extruder	1set
4.	SJSZ 92/188 Conical Twin Screw Extruder	1set

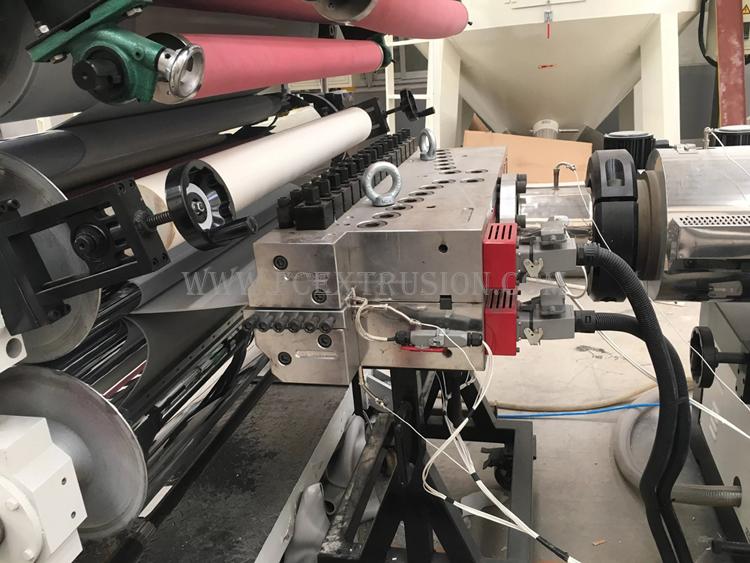

5.	T-shaped Mould and Die	1set

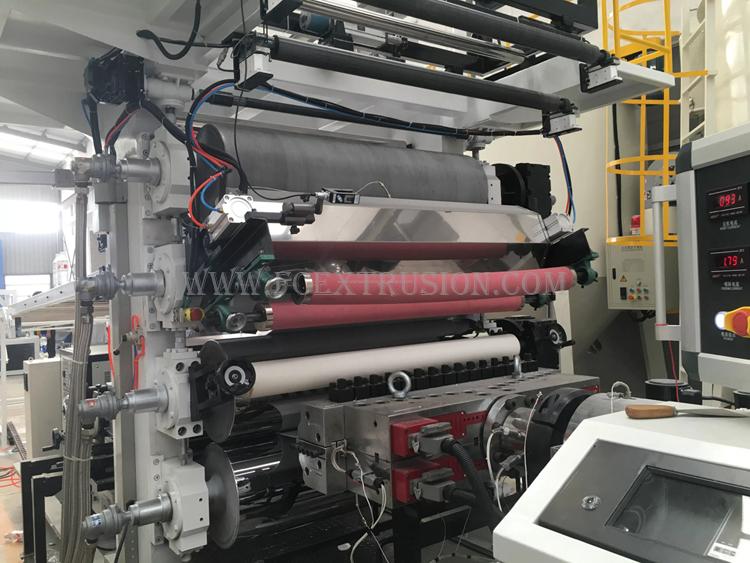

6.	Four-roll Calender	1set
7.	Cooling Frame	1set
8.	Trimming Set	1set
9.	Hauling Device	1set

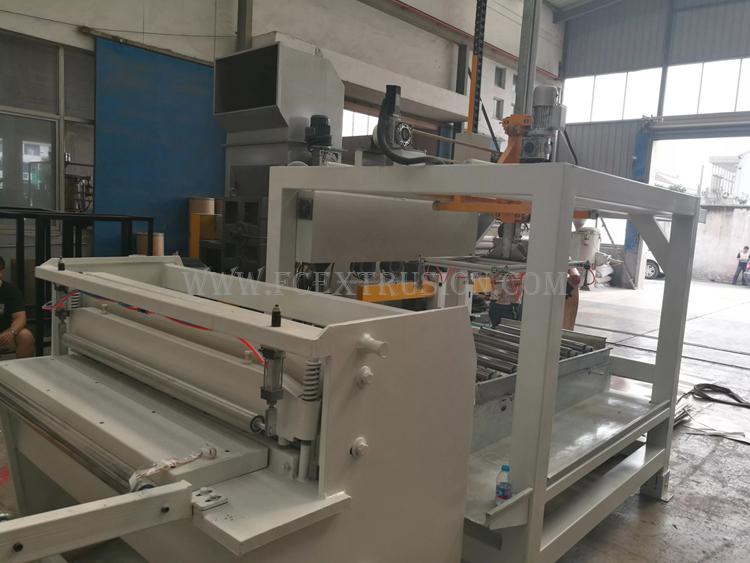

10.	Automatic Cutting Machine	1set

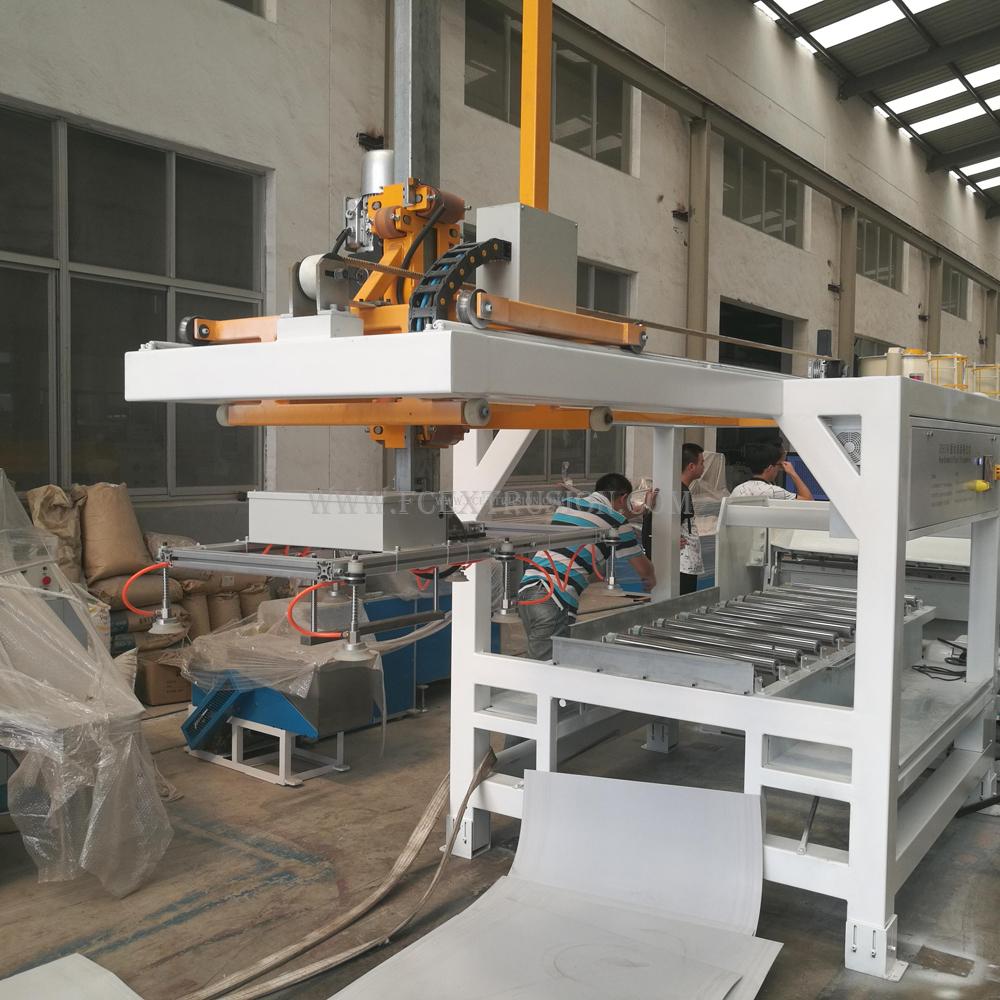

11.	Stacking Section	1set
