Plastic Profile Making Machine

  • WPC Profile Production Line
WPC Profile Production Line

WPC Profile Production Line

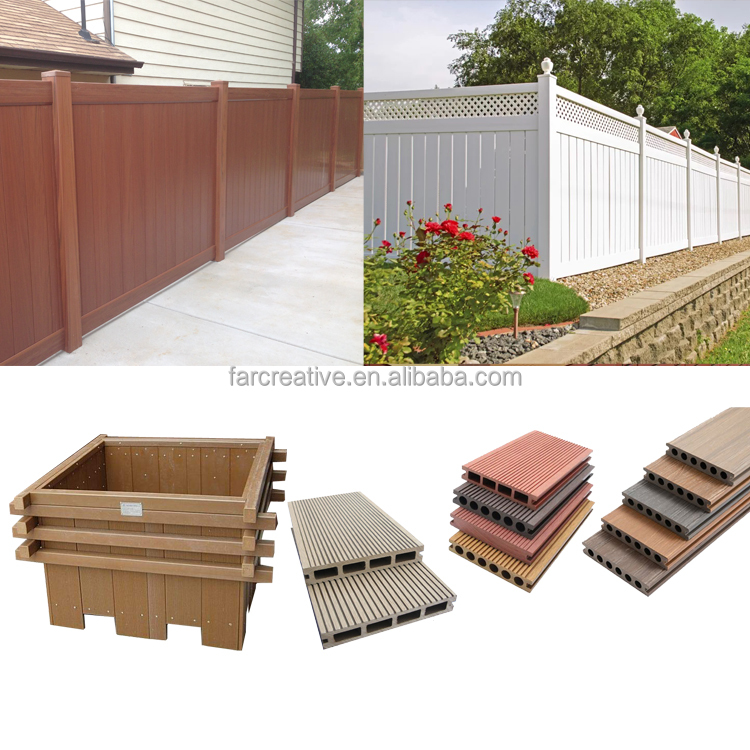

  • Application: WPC decking, WPC fence
  • Plastic Processed: PE, PVC, WPC
  • Product description:
  • INQUIRY WHATSAPP

PVC Wall Panel Making Machine

Series WPC Panel Making Machine is mainly used in WPC Panel, WPC dekcing and fence, WPC door & window profiled material, wide door plate, window plate, For different sectional surface and molds, twin conical screw extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.
Capacity of main frame can be optionally chosen from 150-350 kgs/hour.

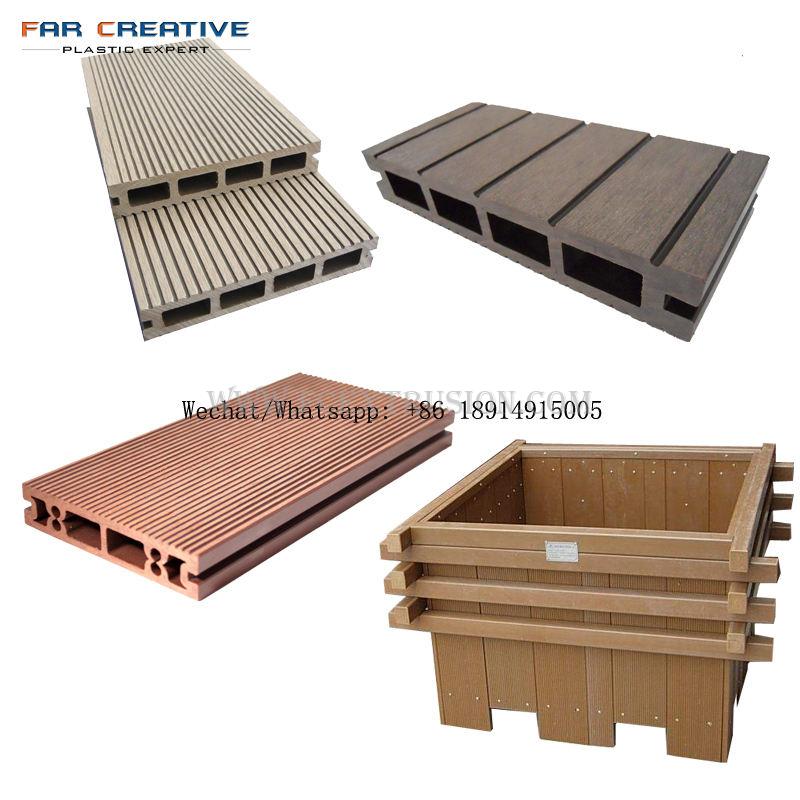

Product Appliaction

Process flow of WPC Panel production line:

Automatic loader→double screw extruder machine→mould→vacuum calibration spraying platform→online lamination(option) or hot stamping(option)
transfer machine(option)→blade cutter→stacker
Features of the WPC Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the WPC Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.

Equipment List

Specification of Equipment List
NAME
Quantity/Set
Description
Remarks
Auto Loader
1
Spiral loader
Automatic feeding machine
1
With twin screw to feed evenly
Extruder SJSZ-51/105 or 65/132
1
18.5/22/37 KW for choice
Moulds
1
Moulds shape can be designed
Calibration Table
1
Moulds shape can be designed
Haul off Machine
1
For driving the products
Cut Machine
1
Cut to the specified length

Conical twin Screw extruder techinical parameters:

Model
SJSZ51/105
SJSZ55/120
SJSZ65/132
SJSZ80/156
Power(kW)
18.5
22
37
55
Screw Diameter(mm)
∅51/∅105
∅55/∅120
∅65/∅132
∅80/∅156
Rotational Speed
36
36
36
36
Output(PVC Power kg/h)
100
150
250
400

MOLD
