Plastic Profile Making Machine

High Quality Profile Making Machine PVC Wall Panel Production Line / PVC Wall Panel Extrusion Line Cutter Machine

Product description: PVC Wall Panel Making Machine is mainly used in PVC Wall Panel, PVC door & window profiled material,wide door plate, window plate
INQUIRY WHATSAPP

Products Description

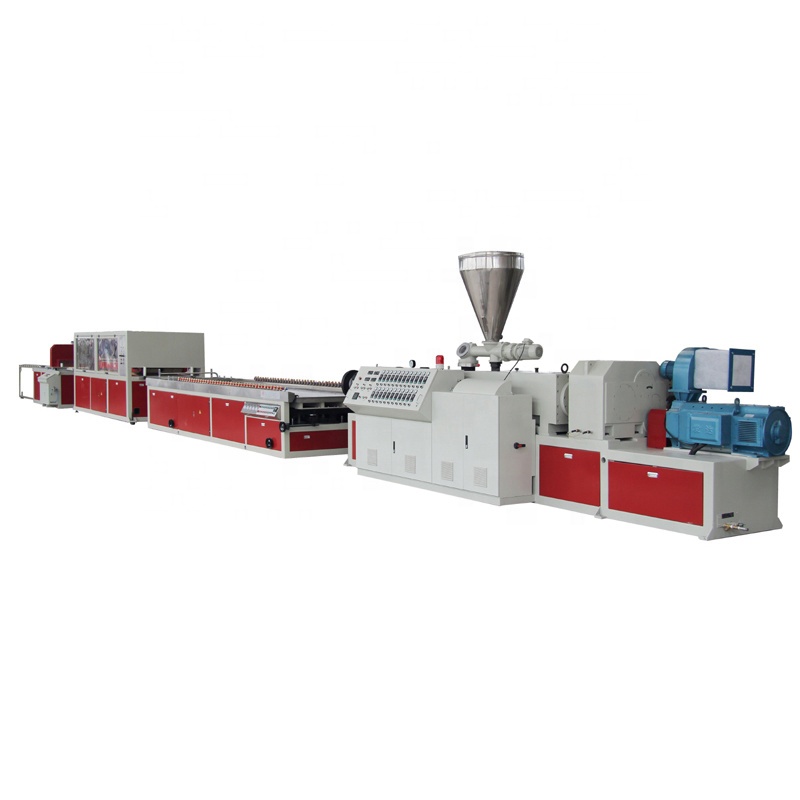

PVC Wall Panel Making Machine

Series PVC Wall Panel Making Machine is mainly used in PVC Wall Panel, PVC door & window profiled material,wide door plate, window plate, For different sectional surface and molds, twin conical screw extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.
Capacity of main frame can be optionally chosen from 150-250 kgs/hour.

Product Appliaction

Process flow of PVC ceiling production line:

Automatic loader→double screw extruder machine→mould→vacuum calibration spraying platform→online lamination or hot stamping
transfer machine(option)→blade cutter→stacker
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.

Equipment List

Specification of Equipment List
NAME	Quantity/Set	Description	Remarks
	1	Spiral loader
Automatic feeding machine	1	With twin screw to feed evenly
Extruder SJSZ-51/105 or 65/132	1	18.5/22/37 KW for choice
Moulds	1	Moulds shape can be designed
Calibration Table	1	Moulds shape can be designed
Laminator films	1	Surface treatmen	on line
Haul off machine	1	For driving the products
Cutting	1	Cut

Conical twin Screw extruder techinical parameters:

Model	SJSZ51/105	SJSZ55/120	SJSZ65/132	SJSZ80/156
Power(kW)	18.5	22	37	55
Screw Diameter(mm)	∅51/∅105	∅55/∅120	∅65/∅132	∅80/∅156
Rotational Speed	36	36	36	36
Output(PVC Power kg/h)	100	150	250	400
