Specifications
|
||||
Machine Model
|
FCDG
|
|||
Processed Material
|
PLA, PBAT, PP, Starch and Etc.
|
|||
Final Product Shape
|
Granules
|
|||
System Composition
|

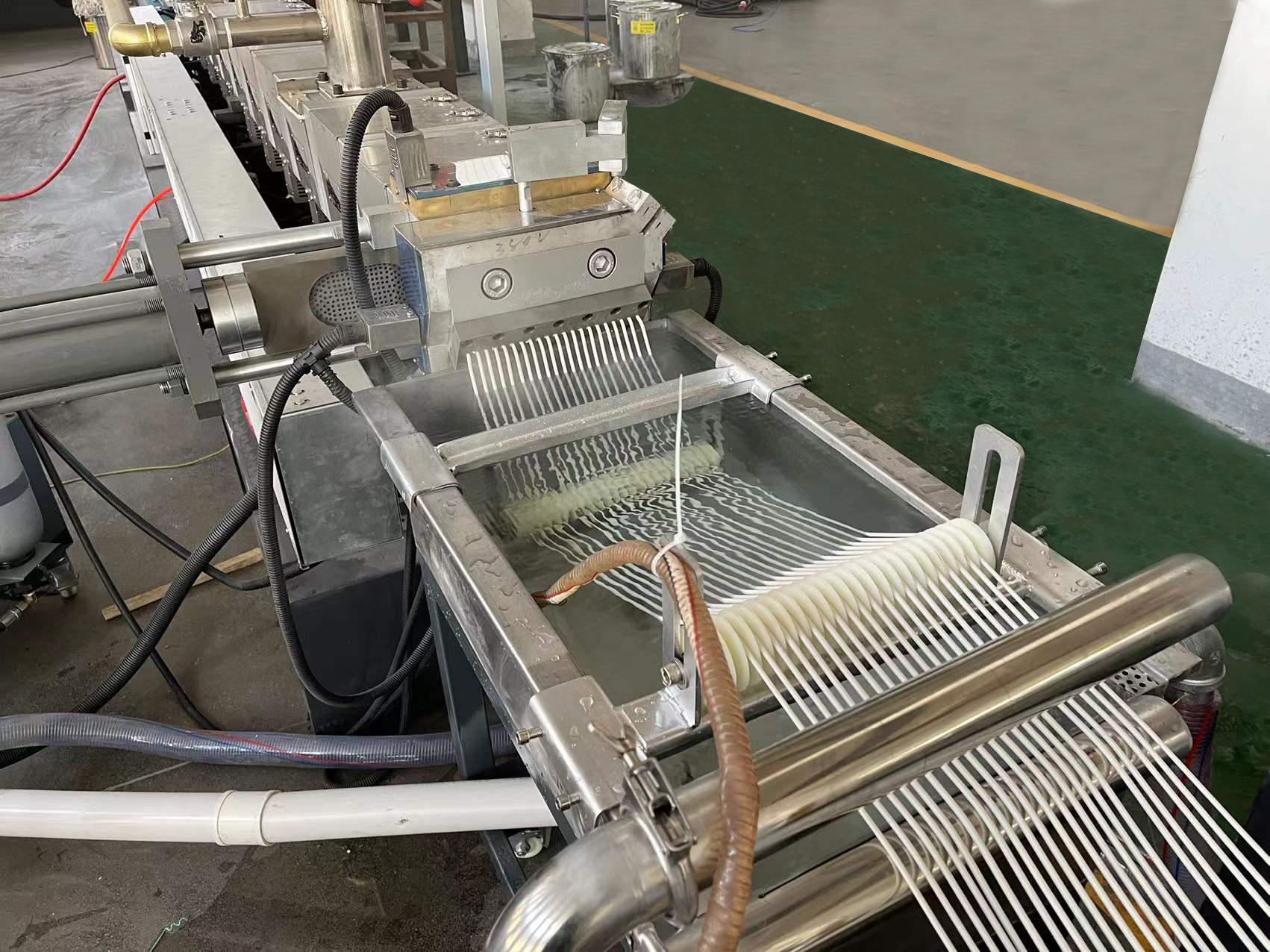

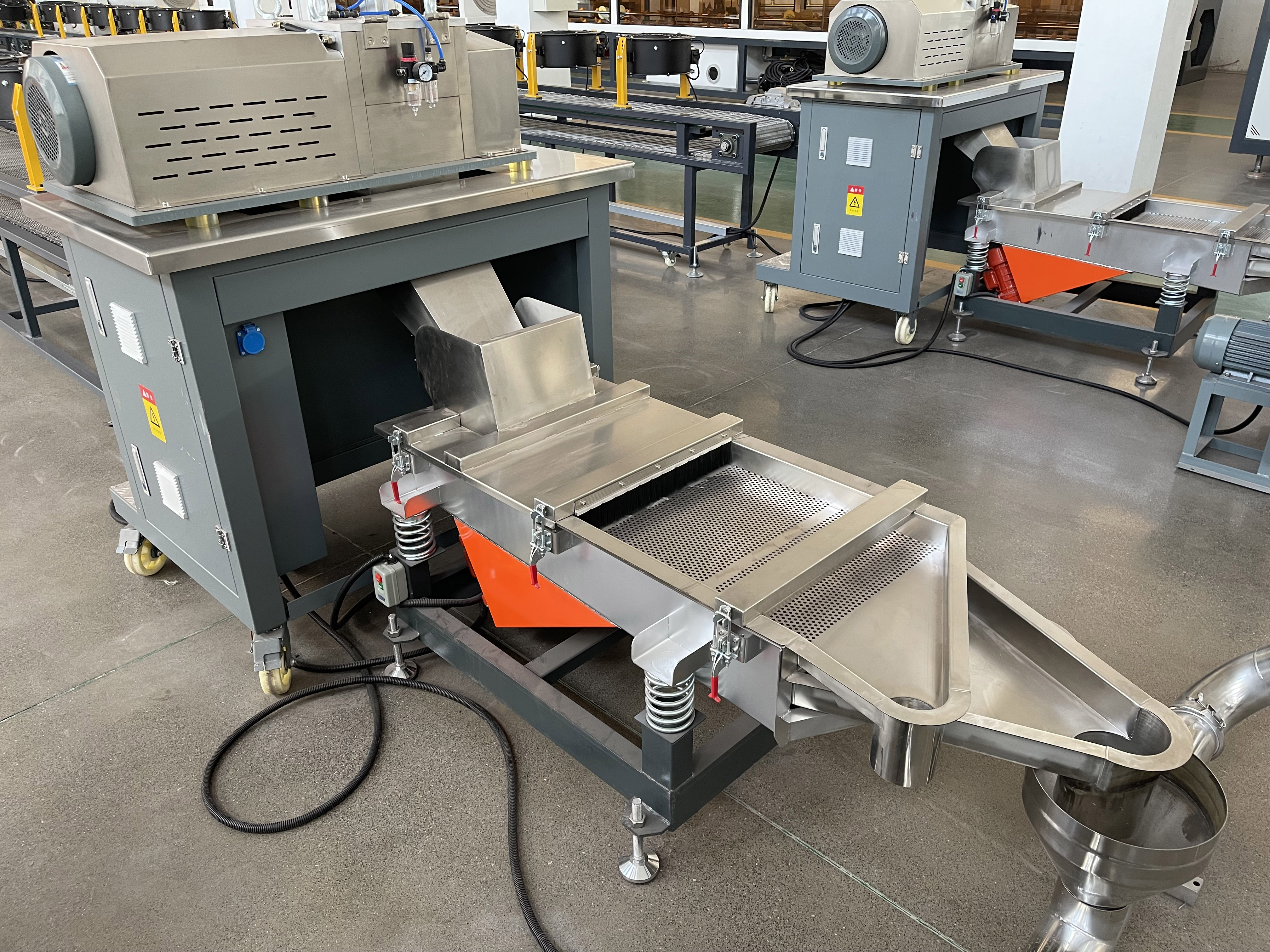

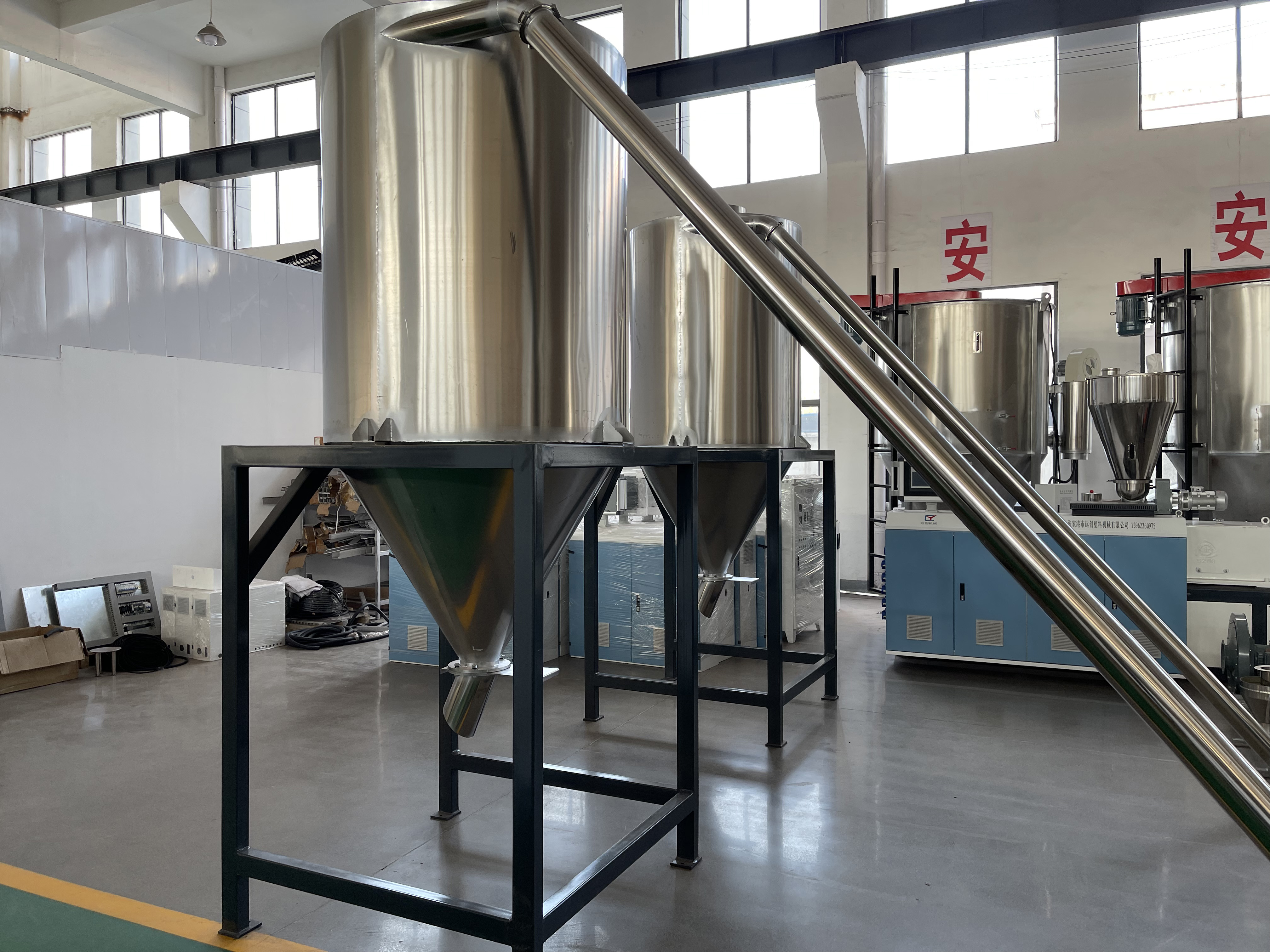

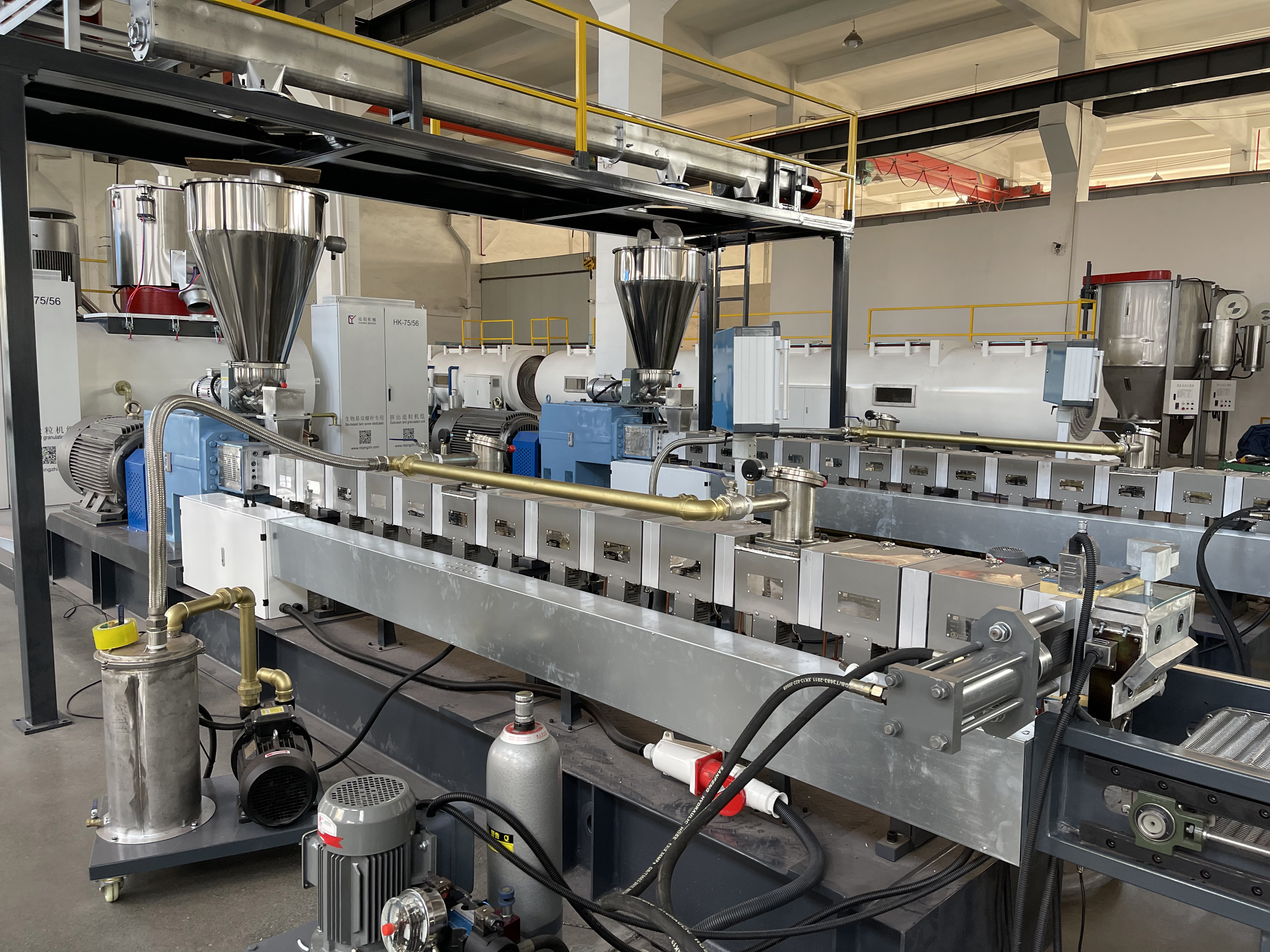

Twin Screw Extruder, Twin Screw Feeder, Water cooling Device, Granules cutter, Vibrating screen, Conveyor Belt,Fan and Product Silo.
|
|||
Output Range(kg/h)
|
60-900
|
|||
Diameter of screw
|
35mm-92mm(standard)
|
|||
L/D of screw
|
44
|
|||
Voltage Standard
|
According to the Voltage of the Customer's Location
|
|||
Warranty
|
12 months from the date of bill of lading
|
|||
Technical services
|
Project design, factory construction, installation and recommendations, commissioning
|
Model
|
Output(kg/h)
|
Main Power(kw)
|
Screw Diameter(mm)
|
L/D
|
FCDG-50
|
100-150
|
55
|
50
|
1:44
|
FCDG-65
|
220-270
|
110
|
65
|
1:44
|
FCDG-75
|
350-400
|
132
|
75
|
1:44
|
FCDG-92
|
700-900
|
160
|
92
|
1:44
|
