Plastic Pipe Making Machine

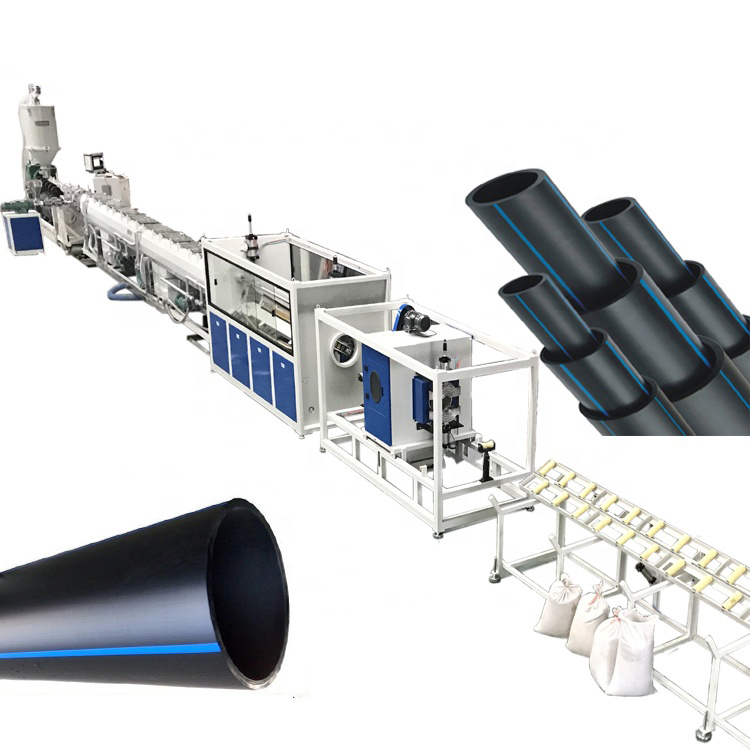

HDPE pipe extrusion line 20-110mm plastic PE HDPE production line/Plastic extruder

Application: PIPE
Product description:
INQUIRY WHATSAPP

Flow chart of PE pipe extrusion line :

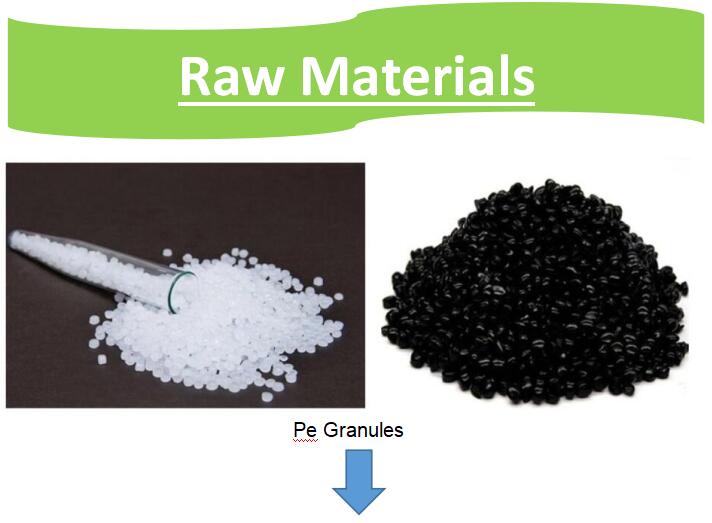

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)

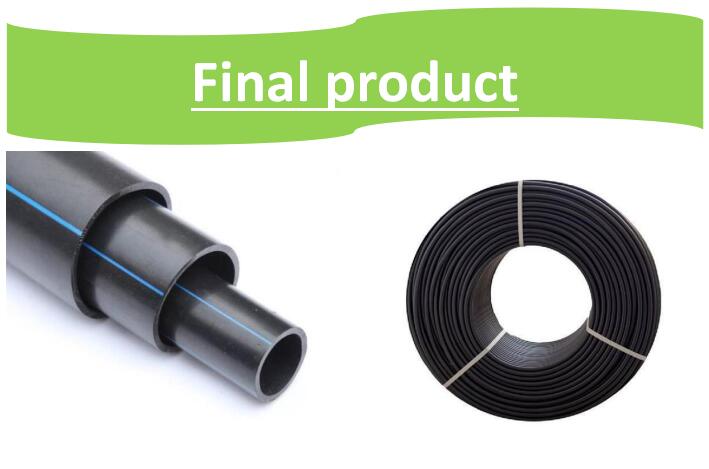

PE pipe extrusion line application description: This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.

Characteristics PE pipe extrusion line : · Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h

· Diameter: from 16 to 800mm

· Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate

Technical Parameter for PE pipe extrusion line :

Pipe Range (mm)	16-63	20-110	75-160	90-250	110-315	160-450	315-630	500-800
Extruder	65/30	65/33	75/30	75/33	90/33	90/33	120/33	150/33
Motor power (KW)	30/37	55/75	75/90	90/110	132	160	280	335
Capacity (Kg/h)	60-130	100-150	200-300	220-350	300-400	350-450	500-600	700-900
Max. Speed	15m/min	10m/min	8m/min	6m/min	3m/min	1.2m/min	1.0m/min	0.8m/min
