Plastic Pipe Making Machine

Water Supply Large Diameter Manufacturing Plastic PP PPR HDPE PE Pipe Extrusion

Product description:
INQUIRY WHATSAPP

Products Description

PVC pipe processing flow:

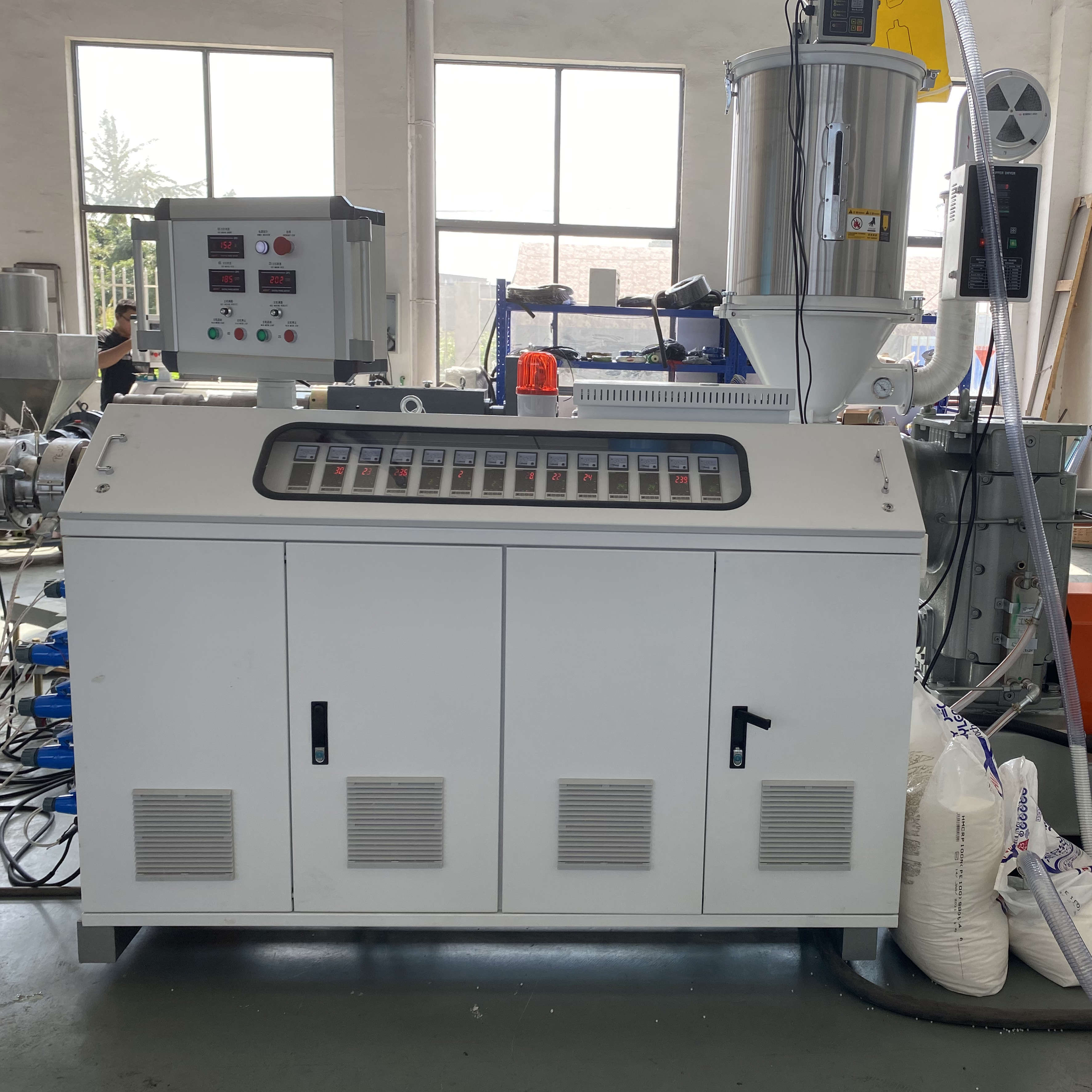

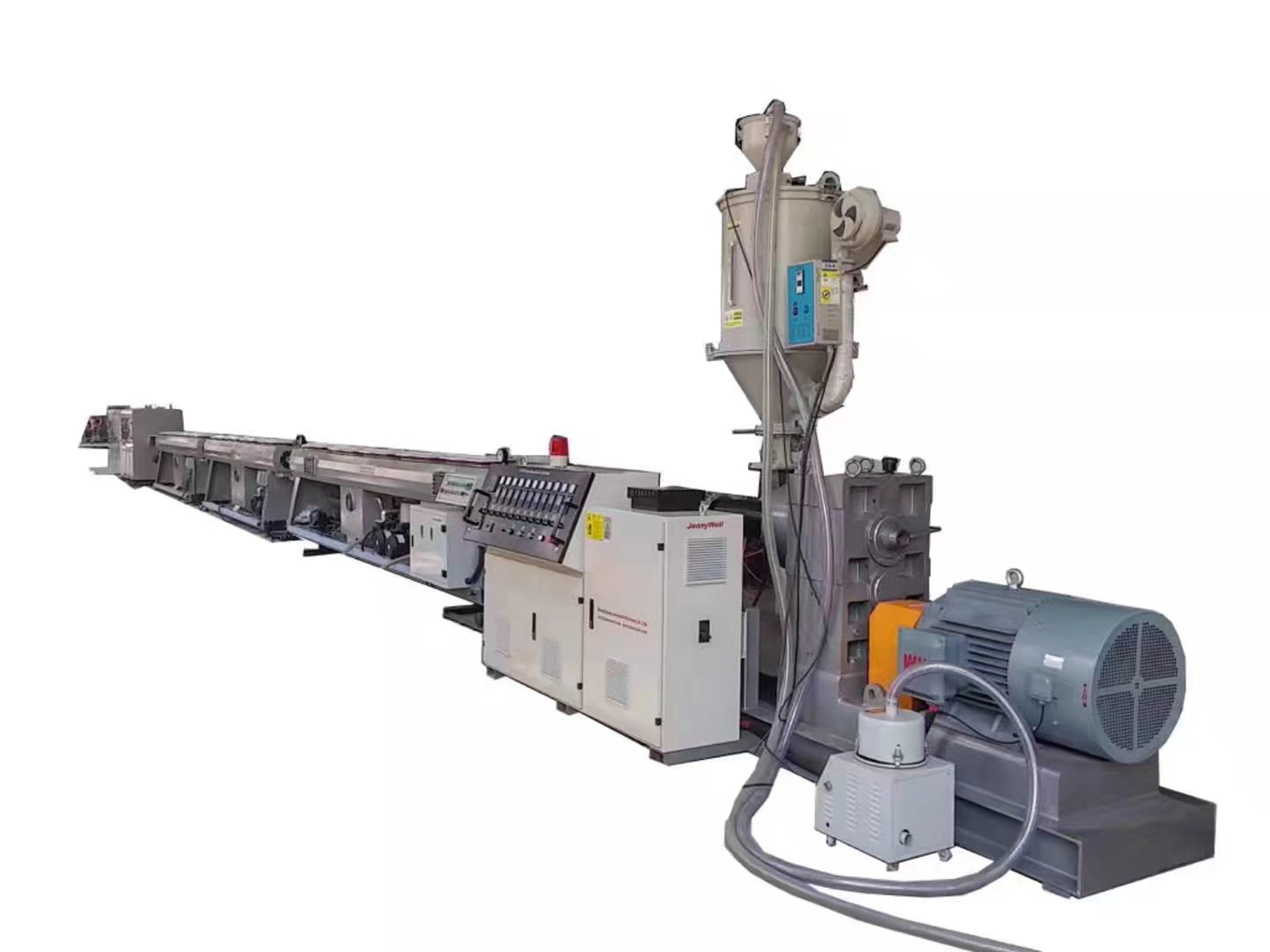

Material →Mixer →Forced feeding →conical double screw extruder →mould & calibrator → vacuum spay cooling tank →printer → haul-off→cutter →stacker

Model	Screw Diameter (mm)	Pipe Range	Capacity	Main Motor Power	Total Power	Line Length
Aoboli-P1	60	38	300-400	380	173	50

Exhibition

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

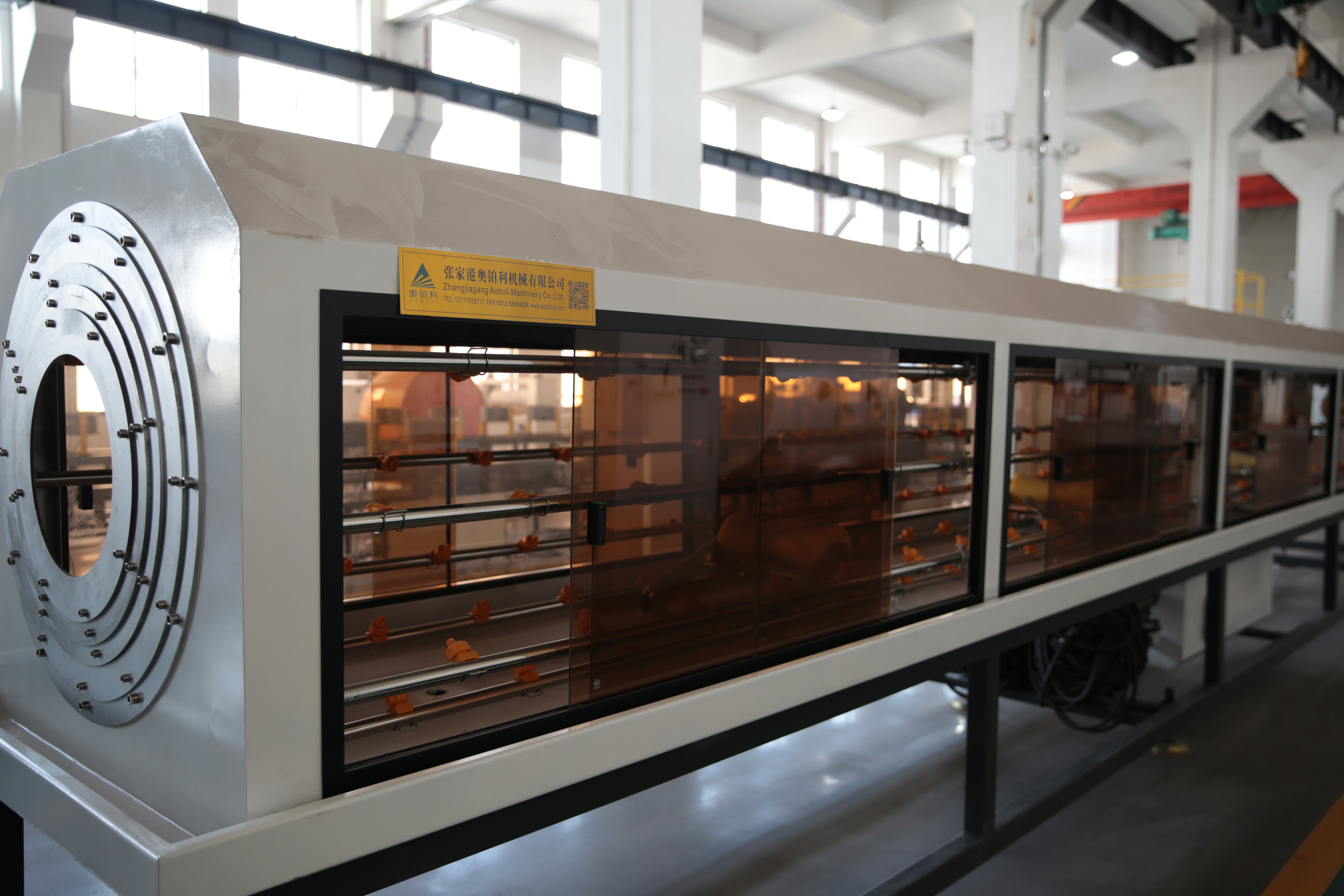

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.

Cooling tank is used to cool pipe further.

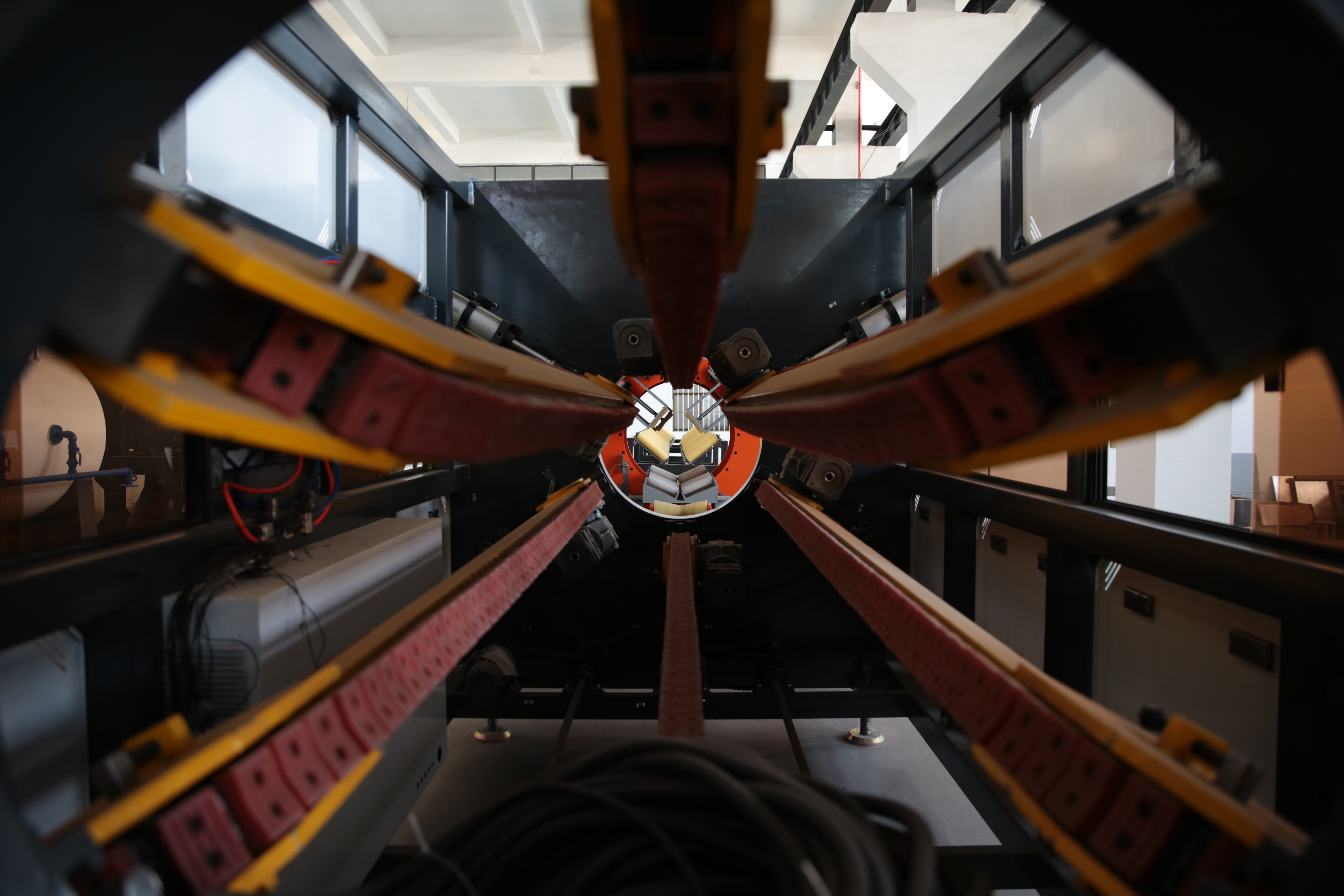

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company

will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming
speed,also avoid deformation of pipe during traction.

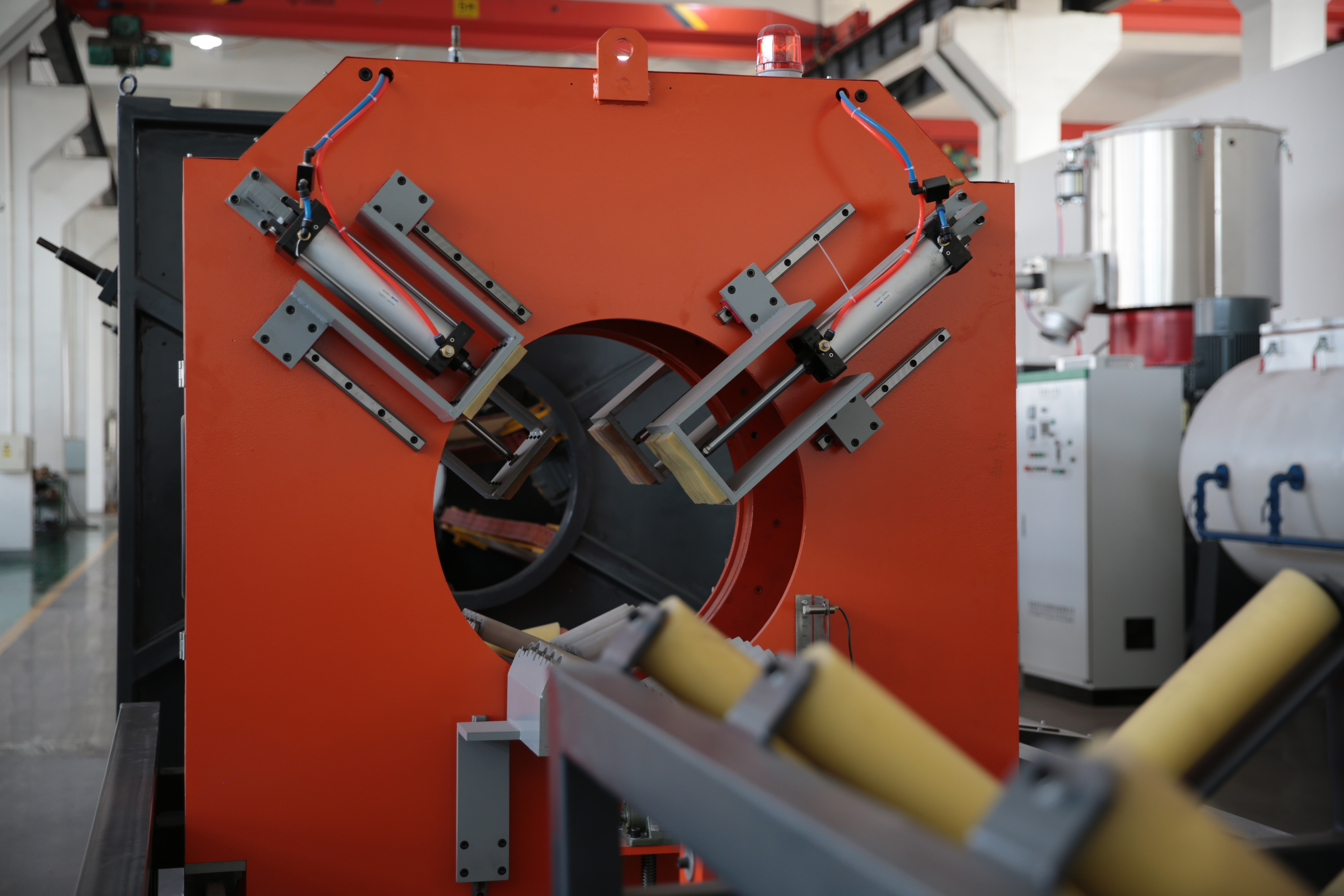

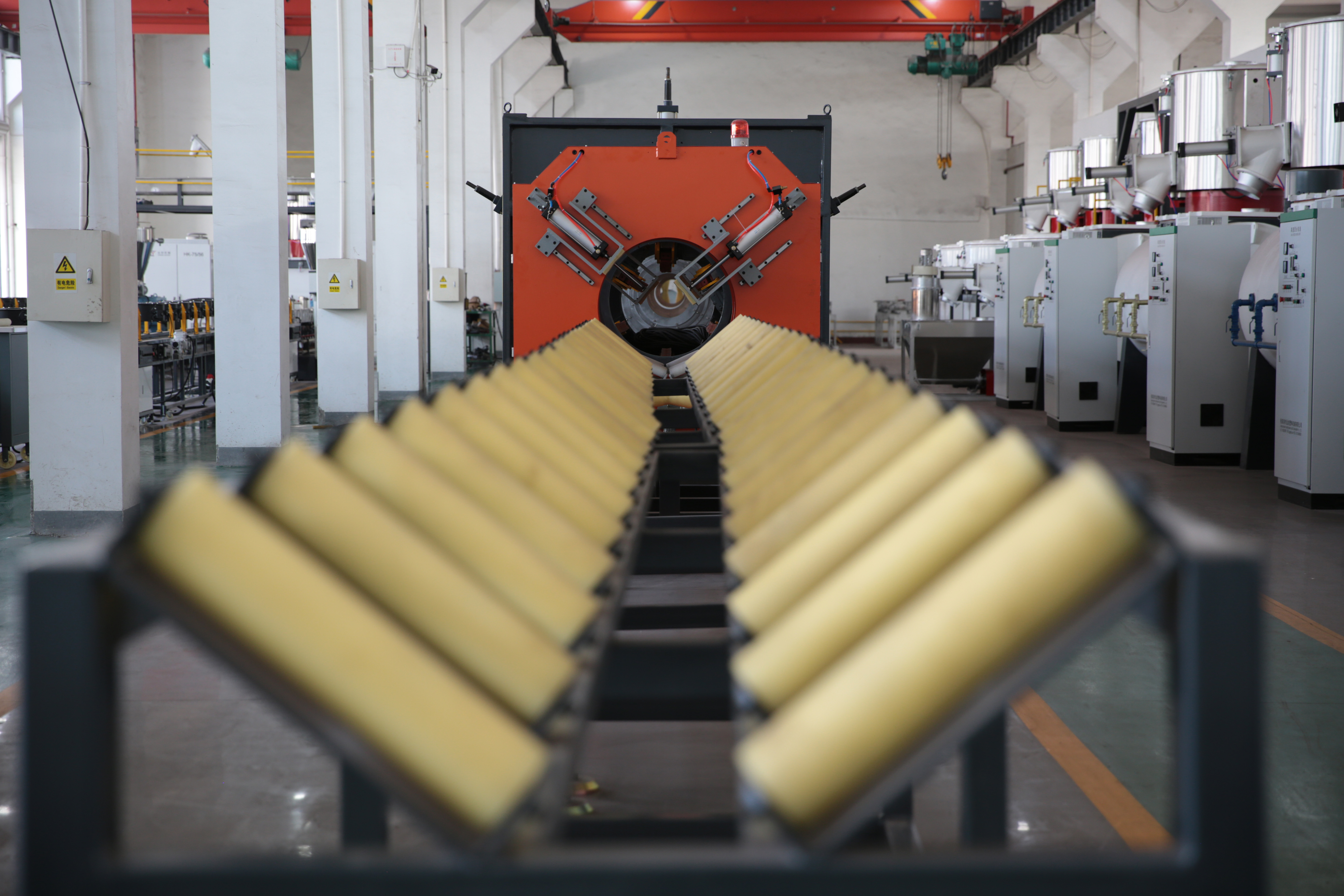

Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting. Customer can set the length of pipe

they want to cut. Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade
and saws stuck for thick pipe and cut face of pipe is smooth).
